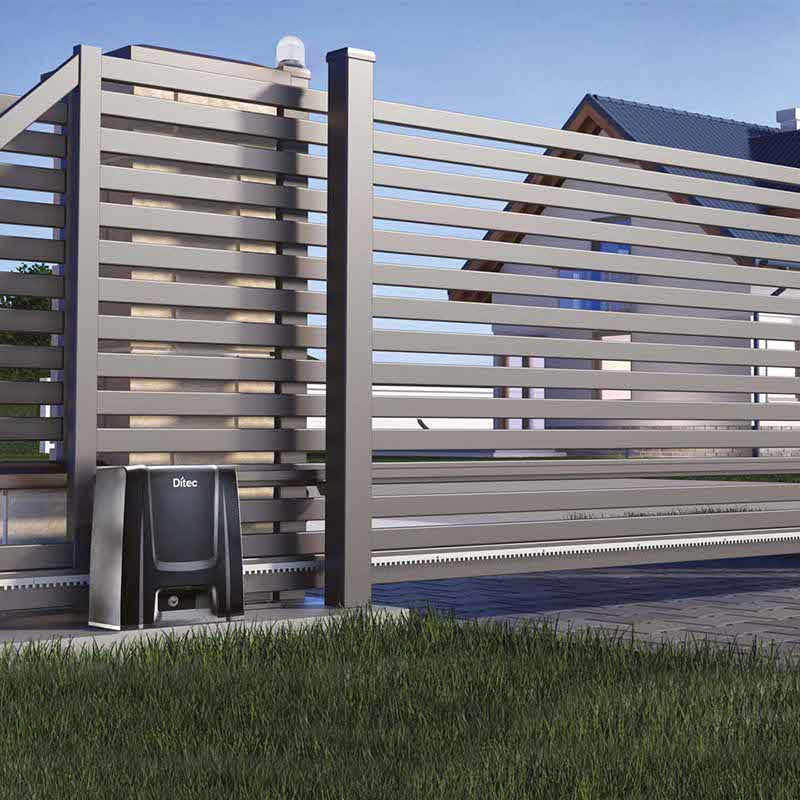

- Industrial Sliding gate operator is designed to move gates installed in heavy industrial and commercial buildings.
- Reliable and robust operator with heavy performance gear motor.
- Powder coated steel vandal-proof box with additional fan ventilation and foundation plate.
- It has non-stop operative capacity 24/7.
- Long-lasting operator with zero maintenance.
- Soft start and Soft stop.
- Easily accessible emergency release.
| Dimension | W-265 mm x H-280 mm x D-100 mm |
|---|---|
| Supply Voltage | 220 (±10%)/50 V/Hz |
| Absorbed Power | 550 W |
| Reduction Ratio 1 | 32 |
| Pinion Type | Z16 |
| Max Output Torque | 27.5 Nm |
| Thermal Protection | 125 °C |
| Use Frequency | 70% |
| Operating Temperature Range | -40…+40 °C |
| Protection Class | IP44 |
| Capacitor Volume | 22 μF |
| Limit Switches | Magnetic |
| Gate Speed | 10 m/min |
| Maximum Weight of Gate | 1300 Kg |
